Plumbing Copper Tube

Plumbing Copper Tube

Winland has been supporting worldwide customers to make their plumbing projects healthy, safe and affordable. Our copper tubes are tailored as per end user's demand.

If you intend to use copper for water supply piplines, please feel free to drop us a message.

Copper Tube Standard

Winland supplys plumbing copper tube base on international standards, which include ASTM B88, ASTM B306, JIS H3300 and BS EN1057.

The pipe manufacturing processes are strictly comply with these standards, to ensure finished product's tolerance, cleanness, temper and many other factors keep high quality as desired.

Why Choose Copper Tube for Plumbing?

As a popular material for plumbing service, copper has plenty of advantages.

With bright & clean internal & external surface, even microstructure and precision size, Winland Metal's plumbing tube offer excellent usability to plumbers.

  • Copper Tube is Easy to Install and Maintaince

    Compare to other material, tubes made of copper are flexible and easy to handle, so it could save a lot time for processing, installation and maintaince.

    Copper is soft, copper tube could be easily cut, bent to suit the complex pipeline systems.

  • Copper tubes are durable

    Copper is a material with excellent corrosion resistance in nature, and the most commonly used pipe in many countries is copper pipe, which could last for decades and work as new products.

    Among the various tubing materials, copper tubing is the most durable. The material of the copper pipe is hard, not easy to corrode, and resistant to high temperature and high pressure, so there are no major restrictions on the use environment.

    The melting point is as high as 1083 degrees Celsius, and the temperature of the hot water system is negligible for copper pipes

  • Copper Tube is Healthy and Safe Vessel of Water

    Copper has been proved by many authoritative organizations to have bactericidal ability, and some harmful bacteria in copper pipes can be significantly reduced.

    Biological studies have shown that Escherichia coli cannot continue to reproduce in copper water pipes, and more than 99% of bacteria will be killed after entering copper water pipes for 5 hours.

  • Copper pipes are environment friendly

    Due to the unique antibacterial properties of copper materials, it can effectively inhibit various microorganisms and bacteria in the pipeline, eliminating pollution problems.

  • Copper pipes are fire proof and safe

    Besides, copper Tube will not burn or support combustion or decompose to toxic gases, so it will not carry fire.

  • Copper tube is Economic for Plumbing

    Considering copper tube's long lasting and connvience maintaince, it saves much labor & material cost in plumbing life circle.

Copper tube for plumbing



Packing

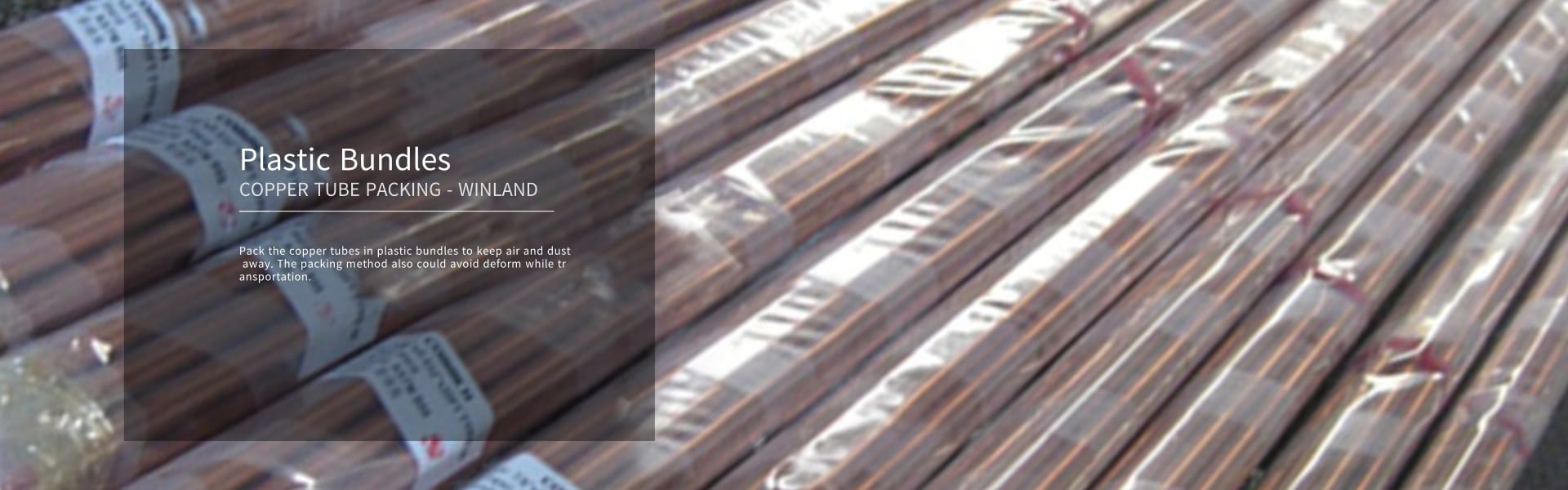

Winland Plastic Bundle Packing for Copper Pipe

Nice packing is very important to protect copper tubes and ensure the products be delivered in fine condition.

Winland Metal packs copper tube with caps in plastic bundles, and provide export wooden structure to prevent the tubes from deforming while transportation.

Plumbing Copper Tube Product List

Part NumberOutside DiameterWall ThicknessTheoretcial Weight
Part#: RSGYT1408 | JIS H3300 | Straight pipe | |H | Plumbing Copper Tube
14.00mm2.0mm0.67kg/m
Part#: RSGYT605 | JIS H3300 | Straight pipe | |H | Plumbing Copper Tube
6.00mm0.50mm0.08kg/m
Part#: RSGBY609 | JIS H3300 | Straight pipe | |1/2H | Plumbing Copper Tube
6.00mm1.00mm0.14kg/m
Part#: RSGBY1206 | JIS H3300 | Straight pipe | |1/2H | Plumbing Copper Tube
12.00mm0.60mm0.19kg/m
Part#: RSGBY12704 | JIS H3300 | Straight pipe | |1/2H | Plumbing Copper Tube
12.70mm0.70mm0.24kg/m
Part#: RSGBY1403 | JIS H3300 | Straight pipe | |1/2H | Plumbing Copper Tube
14.00mm0.70mm0.26kg/m
Part#: RSGBY22203 | JIS H3300 | Straight pipe | |1/2H | Plumbing Copper Tube
22.20mm0.80mm0.48kg/m
Part#: RSGBY2504 | JIS H3300 | Straight pipe | |1/2H | Plumbing Copper Tube
25.00mm1.00mm0.67kg/m
Part#: B306DWV105ZG | ASTM B306 Copper Drainage Tube (DWV) | Straight pipe | DWV |H58 | Plumbing Copper Tube
104.78mm1.47mm4.25kg/m
Part#: RSGYT1403 | JIS H3300 | Straight pipe | |H | Plumbing Copper Tube
14.00mm0.70mm0.26kg/m
Part#: RSGYT63502 | JIS H3300 | Straight pipe | |H | Plumbing Copper Tube
6.35mm0.30mm0.05kg/m
Part#: RSGYT1404 | JIS H3300 | Straight pipe | |H | Plumbing Copper Tube
14.00mm0.80mm0.30kg/m
Part#: RSGBY95205 | JIS H3300 | Straight pipe | |1/2H | Plumbing Copper Tube
9.52mm0.50mm0.13kg/m
Part#: RSGBY1001 | JIS H3300 | Straight pipe | |1/2H | Plumbing Copper Tube
10.00mm0.25mm0.07kg/m
Part#: RSGYT1007 | JIS H3300 | Straight pipe | |H | Plumbing Copper Tube
10.00mm0.70mm0.18kg/m
Part#: RSGYT1203 | JIS H3300 | Straight pipe | |H | Plumbing Copper Tube
12.00mm0.35mm0.11kg/m
Part#: RSGBY1005 | JIS H3300 | Straight pipe | |1/2H | Plumbing Copper Tube
10.00mm0.50mm0.13kg/m
Part#: RSGBY1201 | JIS H3300 | Straight pipe | |1/2H | Plumbing Copper Tube
12.00mm0.25mm0.08kg/m
Part#: RSGBY1408 | JIS H3300 | Straight pipe | |1/2H | Plumbing Copper Tube
14.00mm2.00mm0.67kg/m
Part#: RSGBY1508 | JIS H3300 | Straight pipe | |1/2H | Plumbing Copper Tube
15.00mm2.00mm0.73kg/m
Part#: RSGBY15908 | JIS H3300 | Straight pipe | |1/2H | Plumbing Copper Tube
15.90mm2.00mm0.78kg/m
Part#: RSGYT12703 | JIS H3300 | Straight pipe | |H | Plumbing Copper Tube
12.70mm0.60mm0.20kg/m
Part#: RSGBY1807 | JIS H3300 | Straight pipe | |1/2H | Plumbing Copper Tube
18.00mm2.00mm0.90kg/m
Part#: RSGBY19105 | JIS H3300 | Straight pipe | |1/2H | Plumbing Copper Tube
19.10mm1.20mm0.60kg/m
Part#: RSGBY2006 | JIS H3300 | Straight pipe | |1/2H | Plumbing Copper Tube
20.00mm1.50mm0.78kg/m
