Winland HVAC & Refrigeration Copper Tube, LWC, Copper pancake coil

Because of its excellent thermal & electrical conductive properties, copper is widely used as core parts in heating, ventilating, air Conditioning and refrigeration systems.

Heater's water tank use copper tube to save energy



Winland supplys copper pancake coil, copper LWC, copper capillary tube, copper inner grooved tube for HVAC & refrigeration applications.

The production according to ATSM B280, BS EN12735, JIS H3300 standards, to ensure the tubes meet requirements of appearance, tesile strength, grain size and so on.

Bend Copper Pipe for Air Conditioner Plant

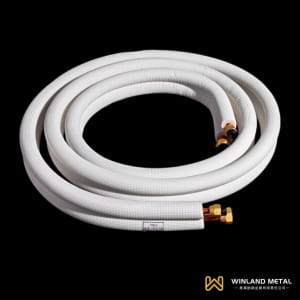

Insulated Copper Pipe for ACR - Winland
Winland's Insulated Copper Pipes

Our pre-insulated copper tubes are very popular for air conditioning mantaince. The tubes comes with brass flare nuts.

Each set of insulated copper pipe has two ACR grade tubes, which in different sizes and pre-insulated by IPXE or black rubber material.











Click to download  HVAC copper tube catalog or insulation copper tubes catalog, get free quotation now!

HVAC Copper Pipe Product List

Part NumberOutside DiameterWall ThicknessTheoretcial Weight
Part#: OKTAZGY10 | BS EN12735-1 | Straight pipe | |R290 | HVAC Copper Pipe
19.06mm1.25mm0.62kg/m
Part#: OKTAZGBY13 | BS EN12735-1 | Straight pipe | |R250 | HVAC Copper Pipe
25.40mm1.00mm0.69kg/m
Part#: OKTAZGY15 | BS EN12735-1 | Straight pipe | |R290 | HVAC Copper Pipe
28.57mm1.00mm0.78kg/m
Part#: OKTAZGBY10 | BS EN12735-1 | Straight pipe | |R250 | HVAC Copper Pipe
19.06mm1.25mm0.62kg/m
Part#: OKTAZGY22 | BS EN12735-1 | Straight pipe | |R290 | HVAC Copper Pipe
53.97mm1.65mm2.42kg/m
Part#: OKTAZGBY21 | BS EN12735-1 | Straight pipe | |R250 | HVAC Copper Pipe
53.97mm1.25mm1.85kg/m
Part#: OKTAZGBY20 | BS EN12735-1 | Straight pipe | |R250 | HVAC Copper Pipe
42.00mm1.50mm1.70kg/m
Part#: OKTAZGBY19 | BS EN12735-1 | Straight pipe | |R250 | HVAC Copper Pipe
41.27mm1.25mm1.40kg/m
Part#: OKTAZGBY07 | BS EN12735-1 | Straight pipe | |R250 | HVAC Copper Pipe
15.00mm1.00mm0.43kg/m
Part#: OKTAZGBY05 | BS EN12735-1 | Straight pipe | |R250 | HVAC Copper Pipe
12.00mm1.00mm0.32kg/m
Part#: OKTAZGBY12 | BS EN12735-1 | Straight pipe | |R250 | HVAC Copper Pipe
22.23mm1.25mm0.73kg/m
Part#: OKTAZGY02 | BS EN12735-1 | Straight pipe | |R290 | HVAC Copper Pipe
8.00mm0.80mm0.16kg/m
Part#: OKTAZGBY25 | BS EN12735-1 | Straight pipe | |R250 | HVAC Copper Pipe
66.67mm1.25mm2.29kg/m
Part#: OKTAZGY32 | BS EN12735-1 | Straight pipe | |R290 | HVAC Copper Pipe
92.07mm1.65mm4.18kg/m
Part#: OKTAZGY34 | BS EN12735-1 | Straight pipe | |R290 | HVAC Copper Pipe
104.80mm1.65mm4.76kg/m
Part#: OKTAZGY17 | BS EN12735-1 | Straight pipe | |R290 | HVAC Copper Pipe
34.92mm1.25mm1.18kg/m
Part#: OKTAZGY01 | BS EN12735-1 | Straight pipe | |R290 | HVAC Copper Pipe
6.00mm0.80mm0.12kg/m
Part#: OKTAZGY04 | BS EN12735-1 | Straight pipe | |R290 | HVAC Copper Pipe
10.00mm1.00mm0.26kg/m
Part#: OKTAZGBY04 | BS EN12735-1 | Straight pipe | |R250 | HVAC Copper Pipe
10.00mm1.00mm0.26kg/m
Part#: OKTAZGBY27 | BS EN12735-1 | Straight pipe | |R250 | HVAC Copper Pipe
66.67mm2.00mm3.63kg/m
Part#: OKTAZGY19 | BS EN12735-1 | Straight pipe | |R290 | HVAC Copper Pipe
41.27mm1.25mm1.40kg/m
Part#: OKTAZGBY34 | BS EN12735-1 | Straight pipe | |R250 | HVAC Copper Pipe
104.80mm1.65mm4.76kg/m
Part#: OKTAZGY35 | BS EN12735-1 | Straight pipe | |R290 | HVAC Copper Pipe
104.80mm2.50mm7.26kg/m
Part#: OKTAZGY24 | BS EN12735-1 | Straight pipe | |R290 | HVAC Copper Pipe
64.00mm2.00mm3.47kg/m
Part#: OKTAZGBY09 | BS EN12735-1 | Straight pipe | |R250 | HVAC Copper Pipe
18.00mm1.00mm0.48kg/m
