Copper Reducing Socket

Winland Metal Copper Piping Products

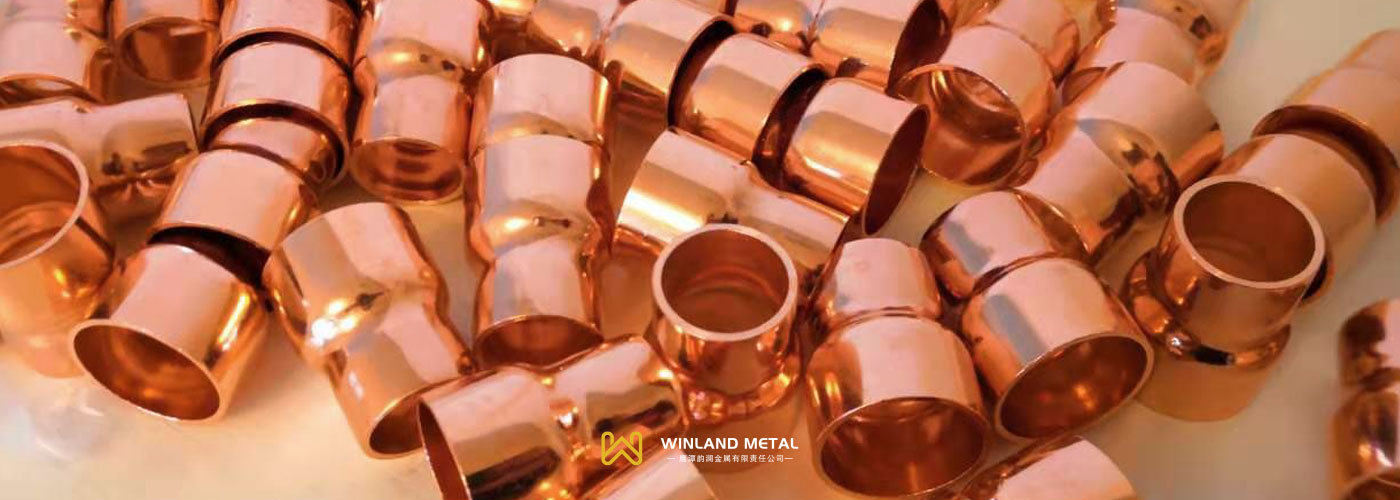

Different types of copper reducing socketsCopper Reducing Sockets

Copper straight sockets with different dimensions at the ends. The products are soldered to copper tubing or another copper fittings. Winland supplies various types of copper reducing socket, which are used for residential or commercial plumbing, HVAC, medical gas, construction and many other industries.

Copper is well known as a healthy material, it is prefered for home appliance, such as water dispenser, due to copper's advantage at antibacterial, bactericidal, bacteriostatic.

Copper fittings are soldered to connect with copper tube or other fittings, are recognized as core spare parts for HVAC systems. Copper fittings also widely used in industries like plumbing, solar, shipbuilding, medical gas supply and etc.

Order & Customization

Click to see size chart of copper reducer, or email us for product customization.

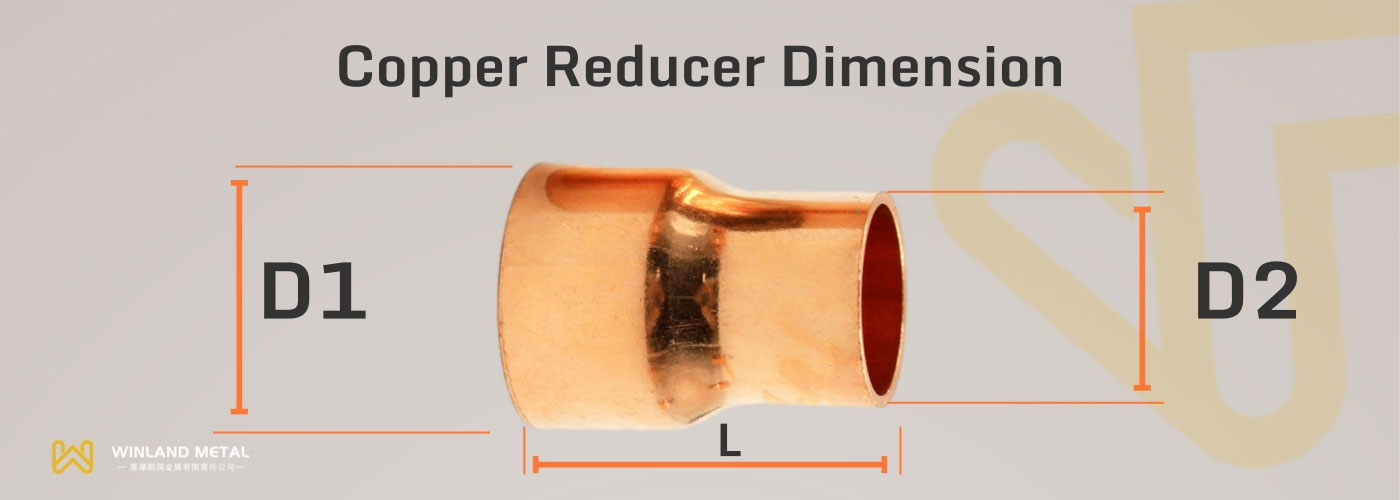

Copper reducer dimension
Dimension of copper reducing socket

Packing

Winland packs copper fittings with plastic bags to ensure the cleanliness of products, as well as prevent contamination from air or moisture. The fittings in bag are then put into carton box. For large amout of quantity, we will use wooden pallet.Copper Fittings Packing method - Winland Metallurgy

Application

Because of its excellent thermal conductivity performance, copper is key material for refrigeration and heating systems. The head exchanger inside air conditioning unit use plenty of copper parts.

Copper products are also corrosion resisting, the modern water heaters use copper to improve heat exchange efficiency, and extend its service life.

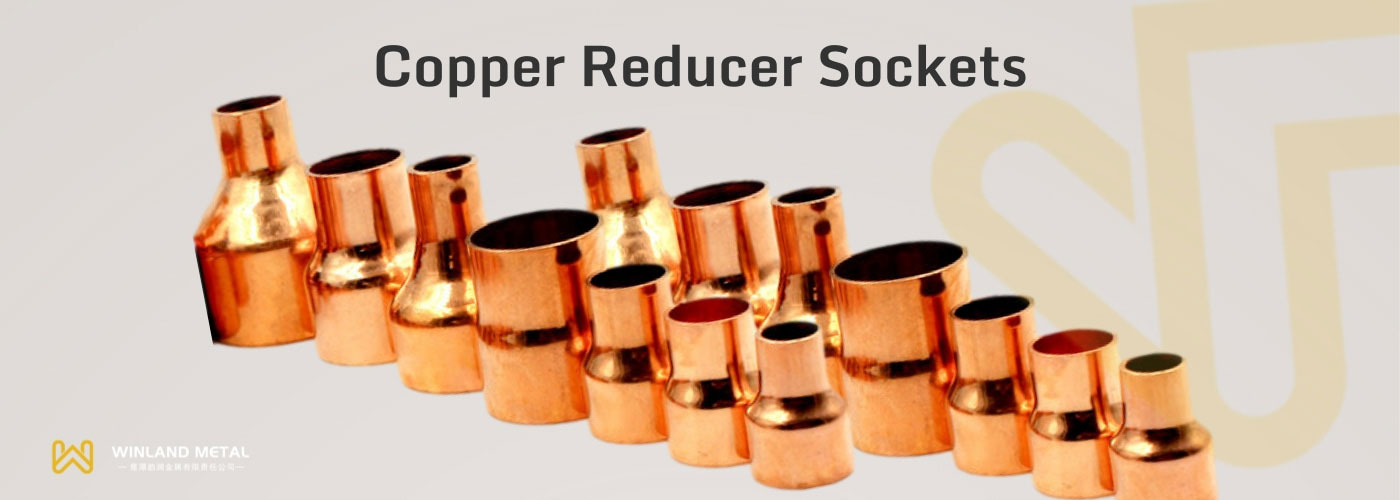

Copper Reducing Sockets - Winland
Copper Reducing Sockets

Copper Reducer Socket

Copper Reducing Socket Size Chart
Copper Reducer3/8" x 1/4"10mm x 6mm19mm1.0mm
pcs
Copper Reducer1/2" x 1/4"12mm x 6mm22mm1.0mm
pcs
Copper Reducer1/2" x 3/8"12mm x 10mm22mm1.0mm
pcs
Copper Reducer5/8" x 1/4"16mm x 6mm25mm1.0mm
pcs
Copper Reducer5/8" x 3/8"16mm x 10mm25mm1.0mm
pcs
Copper Reducer5/8" x 1/2"16mm x 12mm25mm1.0mm
pcs
Copper Reducer3/4" x 1/4"19mm x 6mm34mm1.2mm
pcs
Copper Reducer3/4" x 3/8"19mm x 10mm34mm1.2mm
pcs
Copper Reducer3/4" x 1/2"19mm x 12mm34mm1.2mm
pcs
Copper Reducer3/4" x 3/8"19mm x 16mm34mm1.2mm
pcs
Copper Reducer7/8" x 3/8"22mm x 10mm35mm1.2mm
pcs
Copper Reducer7/8" x 1/2"22mm x 12mm35mm1.2mm
pcs
Copper Reducer7/8" x 5/8"22mm x 16mm35mm1.2mm
pcs
Copper Reducer7/8" x 3/4"22mm x 19mm35mm1.2mm
pcs
Copper Reducer1" x 1/2"25mm x 10mm37mm1.2mm
pcs
Copper Reducer1" x 3/8"25mm x 12mm37mm1.2mm
pcs
Copper Reducer1" x 3/4"25mm x 19mm37mm1.2mm
pcs
Copper Reducer1" x 7/8"25mm x 22mm37mm1.2mm
pcs
Copper Reducer1-1/8" x 5/8"25mm x 16mm38mm1.2mm
pcs
Copper Reducer1-1/8" x 3/4"28mm x 19mm38mm1.2mm
pcs
Copper Reducer1-1/8" x 7/8"28mm x 22mm38mm1.2mm
pcs
Copper Reducer1-1/8" x 1"28mm x 25mm38mm1.2mm
pcs
Copper Reducer1-1/4" x 3/4"32mm x 19mm41mm1.5mm
pcs
Copper Reducer1-1/4" x 7/8"32mm x 22mm41mm1.5mm
pcs
Copper Reducer1-1/4" x 7/8"32mm x 22mm41mm1.5mm
pcs
Copper Reducer1-1/4" x 1"32mm x 25mm41mm1.5mm
pcs
Copper Reducer1-14" x 1-1/8"32mm x 28mm41mm1.5mm
pcs
Copper Reducer1-3/8" x 7/8"35mm x 22mm43mm1.5mm
pcs
Copper Reducer1-3/8" x 1"35mm x 25mm43mm1.5mm
pcs
Copper Reducer1-3/8" x 1-1/8"35mm x 28mm43mm1.5mm
pcs
Copper Reducer1-3/8" x 1-1/4"35mm x 32mm43mm1.5mm
pcs
Copper Reducer1-1/2" x 1"38mm x 25mm45mm1.5mm
pcs
Copper Reducer1-1/2" x 1-1/8"38mm x 28mm45mm1.5mm
pcs
Copper Reducer1-1/2" x 1-1/4"38mm x 32mm45mm1.5mm
pcs
Copper Reducer1-1/2" x 1-5/8"38mm x 35mm45mm1.5mm
pcs
Copper Reducer1-5/8" x 1-1/8"42mm x 28mm47mm1.7mm
pcs
Copper Reducer1-5/8" x 1-1/4"42mm x 32mm47mm1.7mm
pcs
Copper Reducer1-5/8" x 1-3/8"42mm x 35mm47mm1.7mm
pcs
Copper Reducer1-5/8" x 1-1/2"42mm x 38mm47mm1.7mm
pcs
Copper Reducer1-3/4" x 1-1/4"45mm x 32mm49mm1.7mm
pcs
Copper Reducer1-3/4" x 1-3/8"45mm x 35mm49mm1.7mm
pcs
Copper Reducer1-3/4" x 1-1/2"45mm x 38mm49mm1.7mm
pcs
Copper Reducer1-3/4" x 1-5/8"45mm x 42mm49mm1.7mm
pcs
Copper Reducer2" x 1-3/8"50mm x 35mm54mm1.7mm
pcs
Copper Reducer2" x 1-1/2"50mm x 38mm54mm1.7mm
pcs
Copper Reducer2" x 1-3/8"50mm x 42mm54mm1.7mm
pcs
Copper Reducer2" x 1-3/4"50mm x 45mm54mm1.7mm
pcs
Copper Reducer2-1/8" x 1-1/2"54mm x 38mm55mm1.7mm
pcs
Copper Reducer2-1/8" x 1-5/8"54mm x 42mm55mm1.7mm
pcs
Copper Reducer2-1/8" x 1-3/4"54mm x 45mm55mm1.7mm
pcs
Copper Reducer2-1/8" x 2"54mm x 50mm55mm1.7mm
pcs
Copper Reducer2-5/8" x 1-5/8"67mm x 42mm62mm2.0mm
pcs
Copper Reducer2-5/8" x 1-3/4"67mm x 45mm62mm2.0mm
pcs
Copper Reducer2-5/8" x 2"67mm x 50mm62mm2.0mm
pcs
Copper Reducer2-5/8" x 2-1/8"67mm x 54mm62mm2.0mm
pcs
Copper Reducer3" x 1-3/4"76mm x 42mm66mm2.0mm
pcs
Copper Reducer3" x 1-5/8"76mm x 45mm66mm2.0mm
pcs
Copper Reducer3" x 2-1/8"76mm x 54mm66mm2.0mm
pcs
Copper Reducer3" x 2-5/8"76mm x 67mm66mm2.0mm
pcs
Copper Reducer3-1/8" x 2-1/8"79mm x 54mm91mm2.0mm
pcs
Copper Reducer3-1/8" x 2-5/8"79mm x 67mm91mm2.0mm
pcs
Copper Reducer3-1/8" x 3"79mm x 76mm91mm2.0mm
pcs
Copper Reducer3-3/8" x 2-1/8"85mm x 54mm75mm2.0mm
pcs
Copper Reducer3-3/8" x 2-5/8"85mm x 67mm75mm2.0mm
pcs
Copper Reducer3-1/8" x 3"85mm x 76mm75mm2.0mm
pcs
Copper Reducer3-5/8" x 2-5/8"92mm x 67mm104mm2.0mm
pcs
Copper Reducer3-5/8" x 3"92mm x 76mm104mm2.0mm
pcs
Copper Reducer3-5/8" x 2-3/8"92mm x 79mm104mm2.0mm
pcs
Copper Reducer4-1/8" x 2-5/8"105mm x 67mm80mm2.0mm
pcs
Copper Reducer4-1/8" x 3"105mm x 76mm80mm2.0mm
pcs
Copper Reducer4-1/8" x 3-1/8"105mm x 79mm80mm2.0mm
pcs
Copper Reducer4-1/4" x 2-1/8"108mm x 54mm85mm2.0mm
pcs
Copper Reducer4-1/4" x 2-5/8"108mm x 67mm85mm2.0mm
pcs
Copper Reducer4-1/4" x 3"108mm x 76mm85mm2.0mm
pcs
Copper Reducer5-1/4" x 2-5/8"133mm x 67mm113mm2.3mm
pcs
Copper Reducer5-1/4" x 3-3/8"133mm x 85mm113mm2.3mm
pcs
Copper Reducer5-1/4" x 4-1/8"133mm x 108mm119mm2.3mm
pcs
Copper Reducer6-1/4" x 4-1/8"159mm x 108mm119mm2.3mm
pcs
Copper Reducer6-1/4" x 5-1/8"159mm x 133mm155mm2.5mm
pcs
Copper Reducer8-5/8" x 4-1/8"219mm x 108mm155mm2.5mm
pcs
Copper Reducer8-5/8" x 6-1/8"219mm x 159mm155mm2.5mm
pcs
