Customized Thread Stainless Steel Cable Gland Adapter Connector
The cable gland connector is waterproof and made of high quality stainless steel, the product could be applied in the environment with water, providing a safe and reliable connector joint of cables.

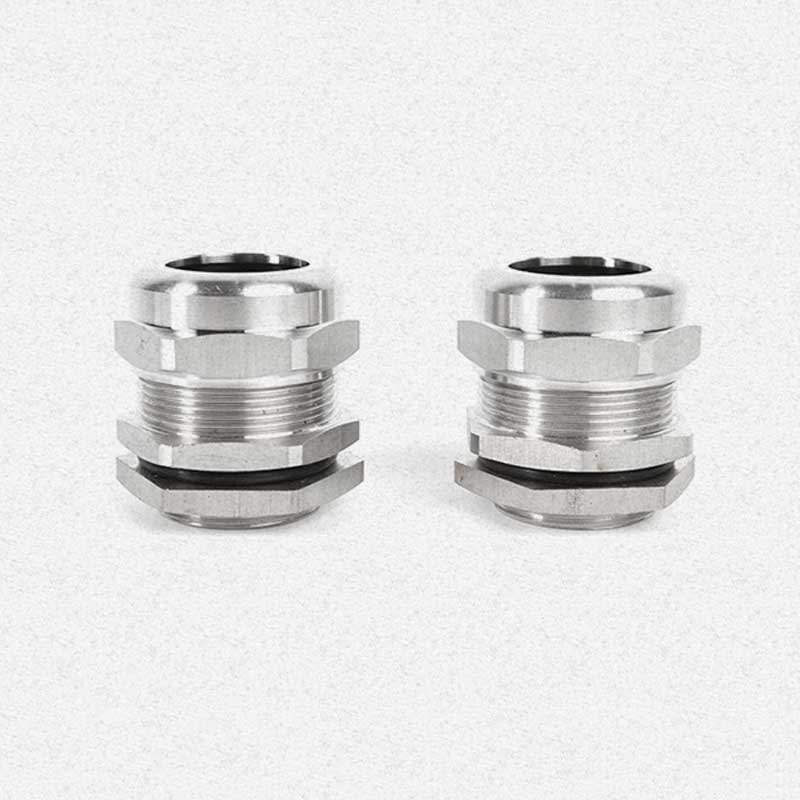

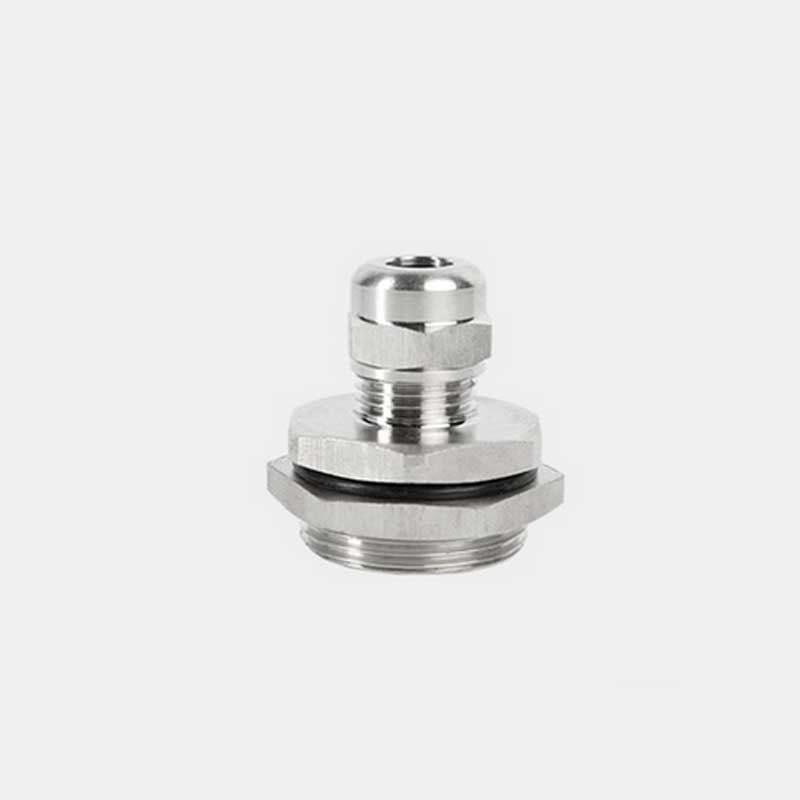

Cable gland, or cable fixed head, is widely used in the fixing and protection of wires and cables of mechanical equipment electrical, marine electrical, and anti-corrosion equipment. The main function of cable gland is to fasten and seal the cable. Our SS cable gland is a combination of stainless steel adapter, nut, gasket and other parts.
The thread could be customized, click to see regular sizes of ss stainless steel cable gland.
Product Size
Belowing are the size chart of type M, G, NTP, and PG thread cable gland connectors. We also support customization dimensions, to order such products, please contact our sales and share the drawings for free quotation.
| Type | Thread | Part Number | Clamping Range (mm) | Thread Diameter (C1 mm) | Thread Length (C2 mm) | Biggest Diagonal (C3 mm) | Wrench Size (A/F mm) |
|---|---|---|---|---|---|---|---|
| M | M6x1.0 | M6-03 | 2-3 | 6 | 6 | 11.4 | 10/10 |
| M | M8x1.0 | M8-05 | 3-4.8 | 8 | 6 | 13.6 | 12/12 |
| M | M10x1.0 | M10-06 | 3.5-6.2 | 10 | 6 | 15.9 | 14/14 |
| M | M12x1.5 | M12-06 | 3.5-6.2 | 12 | 6 | 17.1 | 14/15 |
| M | M12x1.5 | M12-08 | 5-8 | 12 | 8 | 19.6 | 17/18 |
| M | M14x1.5 | M14-08 | 5-8 | 14 | 8 | 19.6 | 17/18 |
| M | M16x1.5 | M16-08 | 5-8 | 16 | 9 | 20.7 | 18/19 |
| M | M16x1.5 | M16-10 | 6-10 | 16 | 9 | 24.3 | 20/22 |
| M | M18x1.5 | M18-10 | 6-10 | 18 | 9 | 24.3 | 20/22 |
| M | M20x1.5 | M20-10 | 6-10 | 20 | 10 | 26.3 | 22/24 |
| M | M20x1.5 | M20-12 | 8-12 | 20 | 10 | 26.3 | 24/24 |
| M | M22x1.5 | M22-10 | 6-10 | 22 | 10 | 28.9 | 22/26 |
| M | M22x1.5 | M22-14 | 10-14 | 22 | 10 | 28.9 | 24/26 |
| M | M24x1.5 | M24-14 | 10-14 | 24 | 12 | 31.8 | 26/28 |
| M | M25x1.5 | M25-10 | 6-10 | 25 | 12 | 35.4 | 22/30 |
| M | M25x1.5 | M25-14 | 10-14 | 25 | 12 | 35.4 | 26/30 |
| M | M25x1.5 | M25-18 | 13-18 | 25 | 12 | 35.4 | 30/32 |
| M | M27x1.5 | M27-18 | 13-18 | 27 | 12 | 35.4 | 32/32 |
| M | M30x1.5 | M30-18 | 13-18 | 30 | 12 | 37.6 | 32/34 |
| M | M32x1.5 | M32-25 | 18-25 | 32 | 12 | 44.5 | 38/40 |
| M | M33x2.0 | M33-25 | 18-25 | 33 | 12 | 44.5 | 38/40 |
| M | M36x1.5 | M36-25 | 18-25 | 36 | 14 | 44.5 | 40/40 |
| M | M40x1.5 | M40-32 | 25-32 | 40 | 15 | 55.3 | 48/50 |
| M | M42x1.5 | M42-32 | 25-32 | 42 | 15 | 55.3 | 48/50 |
| M | M48x1.5 | M48-32 | 25-32 | 48 | 15 | 55.3 | 50/52 |
| M | M50x1.5 | M50-39 | 32-39 | 50 | 15 | 65.2 | 58/60 |
| M | M56x2.0 | M56-39 | 32-39 | 56 | 15 | 65.2 | 60/60 |
| M | M60x2.0 | M60-44 | 36-44 | 60 | 15 | 77.3 | 65/65 |
| M | M63x1.5 | M63-44 | 36-44 | 63 | 15 | 77.3 | 65/70 |
| M | M63x1.5 | M63-54 | 45-54 | 63 | 15 | 83 | 70/75 |
| M | M68x1.5 | M68-54 | 45-54 | 68 | 15 | 83 | 75/75 |
| M | M72x1.5 | M72-54 | 45-54 | 72 | 16 | 88 | 75/80 |
| M | M72x1.5 | M72-66 | 55-66 | 72 | 16 | 99.6 | 80/90 |
| M | M75x1.5 | M75-66 | 55-66 | 75 | 18 | 99.6 | 85/90 |
| M | M78x2.0 | M78-66 | 55-66 | 78 | 18 | 99.6 | 90/90 |
| M | M80x2.0 | M80-66 | 55-66 | 80 | 18 | 99.6 | 90/90 |
| G | G1/8 | G1/8-06 | 3.5-6.2 | 9.72 | 6 | 15.9 | 14/14 |
| G | G1/4 | G1/4-08 | 4-8 | 13.15 | 8 | 19.6 | 17/18 |
| G | G3/8 | G3/8-10 | 6-10 | 16.66 | 9 | 24.3 | 20/22 |
| G | G1/2 | G1/2-12 | 8-12 | 20.95 | 10 | 28.9 | 24.26 |
| G | G1/2 | G1/2-14 | 10-14 | 20.95 | 10 | 28.9 | 26/26 |
| G | G3/4 | G3/4-10 | 6-10 | 26.44 | 12 | 35.4 | 30/32 |
| G | G3/4 | G3/4-14 | 10-14 | 26.44 | 12 | 35.4 | 30/32 |
| G | G3/4 | G3/4-18 | 13-18 | 26.44 | 12 | 35.4 | 30/32 |
| G | G1 | G1-25 | 18-25 | 33.25 | 14 | 44.5 | 38/40 |
| G | G1 1/4 | G1 1/4-30 | 25-32 | 41.91 | 15 | 55.3 | 48/50 |
| G | G1 1/2 | G1 1/2-30 | 25-32 | 47.80 | 15 | 57.5 | 50/52 |
| G | G1 1/2 | G1 1/2-39 | 32-39 | 47.8 | 15 | 57.5 | 50/52 |
| G | G2 | G2-44 | 37-44 | 59.61 | 16 | 83 | 65/70 |
| G | G2 1/2 | G2 1/2-54 | 44-54 | 74.18 | 16 | 94.5 | 75/85 |
| G | G2 1/2 | G2 1/2-66 | 54-66 | 75.18 | 16 | 99.6 | 85/90 |
| G | G3 | G3-77 | 66-77 | 87.88 | 18 | 110 | 100/100 |
| G | G4 | G4-100 | 95-102 | 113.03 | 20 | 133 | 122/122 |
| NPT | NPT1/8 | NPT1/8-06 | 3.5-6.2 | 10.2 | 6 | 15.9 | 14/14 |
| NPT | NPT1/4 | NPT1/4-08 | 4-8 | 13.61 | 8 | 19.6 | 17/18 |
| NPT | NPT3/8 | NPT3/8-10 | 6-10 | 17.05 | 9 | 24.3 | 22/22 |
| NPT | NPT1/2 | NPT1/2-12 | 8-12 | 21.22 | 10 | 28.9 | 24/24 |
| NPT | NPT1/2 | NPT1/2-14 | 10-14 | 21-22 | 10 | 28.9 | 26/26 |
| NPT | NPT3/4 | NPT3/4-10 | 6-10 | 26.56 | 12 | 35.4 | 32/32 |
| NPT | NPT3/4 | NPT3/4-14 | 10-14 | 26.56 | 12 | 35.4 | 32/32 |
| NPT | NPT3/4 | NPT3/4-18 | 13-18 | 26.56 | 12 | 35.4 | 32/32 |
| NPT | NPT1 | NPT1-25 | 18-25 | 33.28 | 14 | 44.5 | 40/40 |
| NPT | NPT1 1/4 | NPT1 1/4-32 | 25-32 | 41.98 | 15 | 55.3 | 50/50 |
| NPT | NPT1 1/2 | NPT1 1/2-32 | 25-32 | 48.005 | 16 | 57.5 | 50/52 |
| NPT | NPT1 1/2 | NPT1 1/2-39 | 32-39 | 48.050 | 16 | 57.5 | 50/52 |
| NPT | NPT2 | NPT2-44 | 37-44 | 60.09 | 18 | 83 | 70/65 |
| NPT | NPT2 1/2 | NPT2 1/2-54 | 44-54 | 72.69 | 18 | 94.5 | 75/85 |
| NPT | NPT2 1/2 | NPT2 1/2-66 | 54-66 | 72.69 | 18 | 99.6 | 85/90 |
| NPT | NPT3 | NPT3-S-77 | 66-77 | 88.60 | 20 | 110 | 100/100 |
| PG | PG7 | PG7-08 | 4-8 | 12.5 | 8 | 19.6 | 17/18 |
| PG | PG9 | PG9-08 | 4-8 | 15.2 | 8 | 19.6 | 18/18 |
| PG | PG11 | PG11-10 | 6-10 | 18.6 | 9 | 24.3 | 22/22 |
| PG | PG13.5 | PG13.5-12 | 7-12 | 20.4 | 10 | 26.3 | 24/24 |
| PG | PG16 | PG16-14 | 10-14 | 22.5 | 10 | 28.9 | 26/26 |
| PG | PG19 | PG19-14 | 10-14 | 23.9 | 10 | 31.8 | 26/28 |
| PG | PG21 | PG21-18 | 13-18 | 28.3 | 12 | 35.4 | 32/32 |
| PG | PG25 | PG25-18 | 13-18 | 29.8 | 12 | 35.4 | 32/32 |
| PG | PG29 | PG29-25 | 18-25 | 37 | 13 | 46.6 | 40/42 |
| PG | PG36 | PG36-30 | 25-32 | 47 | 14 | 57.5 | 50/52 |
| PG | PG42 | PG42-39 | 32-39 | 54 | 14 | 65.2 | 60/60 |
| PG | PG48 | PG48-44 | 37-44 | 59.3 | 15 | 83 | 65/70 |
| PG | PG63 | PG63-54 | 44-54 | 72 | 16 | 89 | 75/80 |
| PG | PG70 | PG70-66 | 54-66 | 80 | 18 | 99.6 | 90/90 |
